MIR-AUS

Cap Heat Press

VIEW COLLECTION

MIR-AUS

Cap Heat Press

View Collection

Special Design, make a difference with normal cap press!
A durable cap press with digital time & temperature control. The auto open feature enables you to multi-task and help avoid over-application. Optional 4 different sizes exchangeable under plates for heat pressing on different size caps, including low-profile, oversize, and full or low crowns.

Specification Details
Machine Code HT-38, HT-45, HT-38 V.2 & HT-45 V.2
Emergency Stop Switch In all models
Machine Type Auto Release, Clamshell
Platen Size 38 × 38 cm & 40 × 50 cm
Pressure Thread Counter Available with HT-38 & HT-45 V.2
Adjustable Gear Pressure Setting Available with HT-38 & HT-45 V.2
Under Plate Exchangeable
Controller Digital Time & Temperature Control
Printable Articles Up to 5 mm thickness
Gas Spring Control Yes
Voltage 120V / 220V
Power 15: 1.5 kW / 1.8 kW; 20: 1.6 kW / 1.8 kW
Time Range 0 – 999 sec
Maximum Temperature 225 °C
Temperature Accuracy ±0.5%
Packing Size 84 × 51 × 59 cm, 93 × 55 × 58 cm & 92 × 55 × 57 cm
Net Weight 43.25 kg, 48.55 kg & 50.55 kg
Gross Weight 46.25 kg, 51.55 kg & 50.55 kg

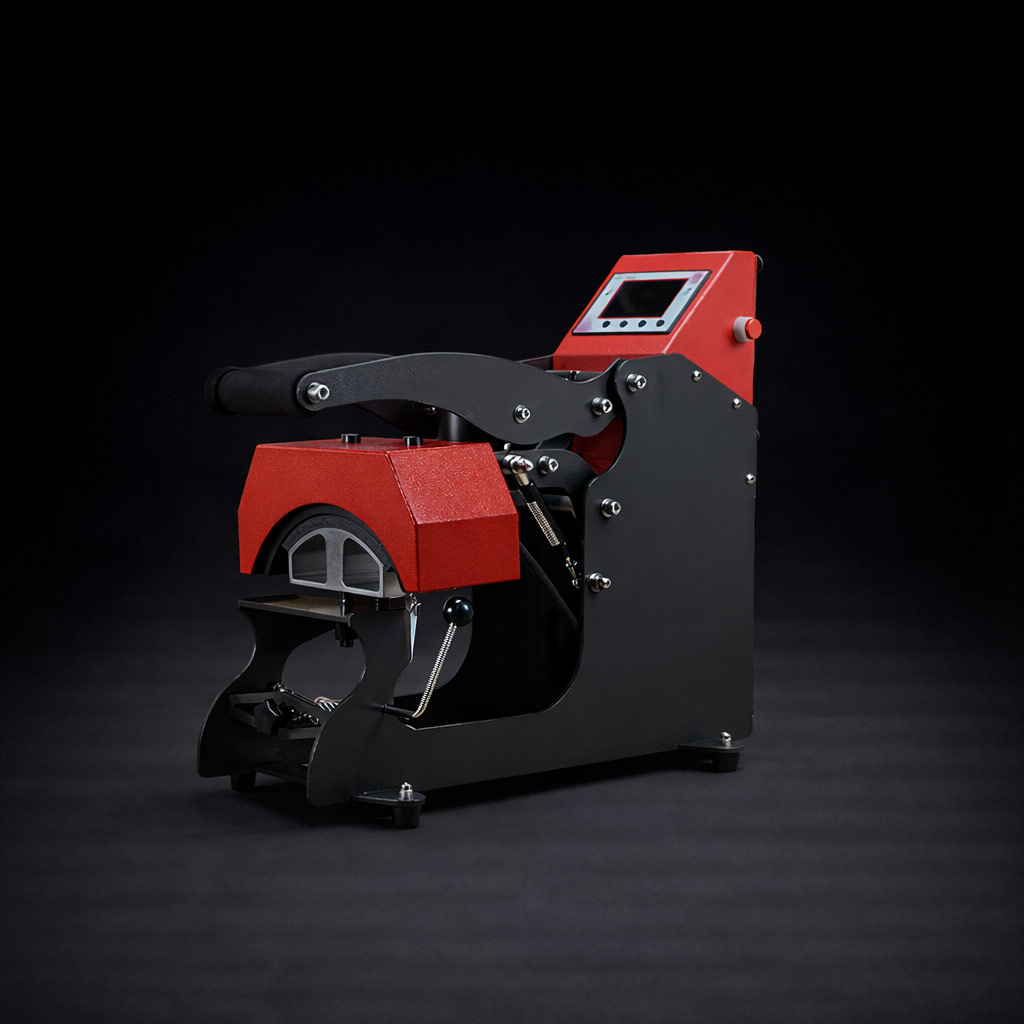

HEST HT-15 V.2 features a special, durable design built for professional cap printing.
Equipped with digital time and temperature control, the auto-open function allows smooth multitasking
while preventing over-application.

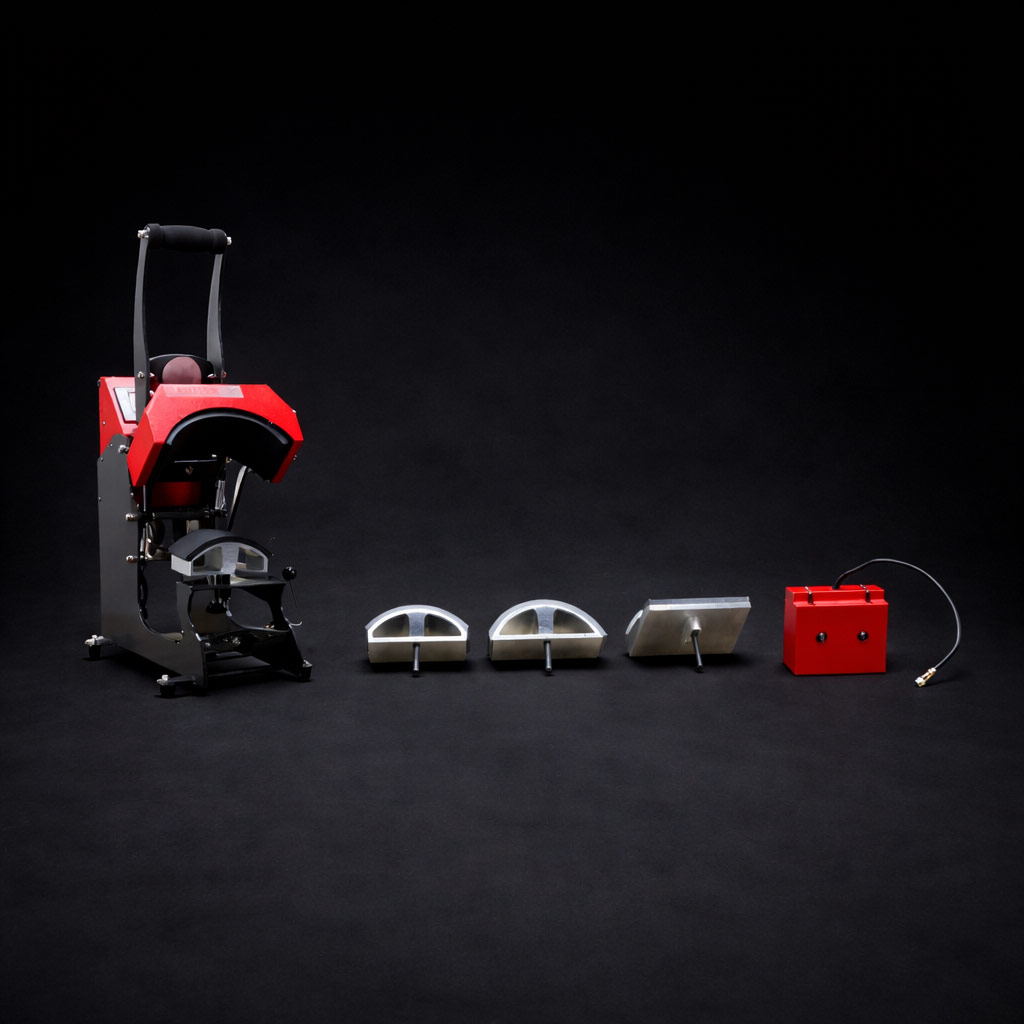

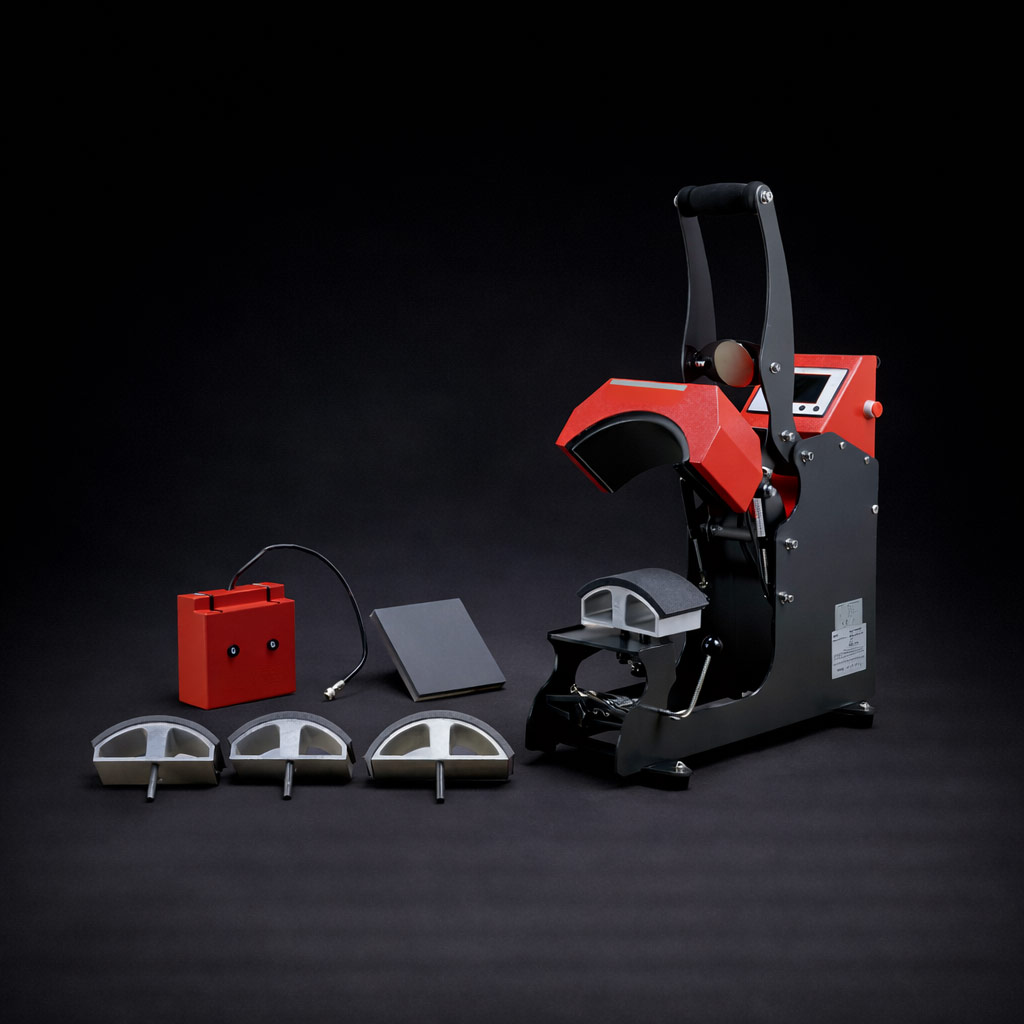

Interchangeable under plates support a wide range of cap styles, including low-profile, oversized,
full-crown, and low-crown caps—making this press a versatile solution for precision headwear production.

SpecificationDetails
NameHest MIR-PRESS
ModelHT-15 V.2
Machine TypeAuto Release, Clamshell
Under PlateExchangeable
Platen Size150 × 150 mm
Base Plate Size72 × 138 mm, 78 × 125 mm, 100 × 138 mm & 102 × 161.5 mm
ControllerDigital Time & Temperature Control
Printable ArticlesUp to 8 mm thickness
Opening Angle35 degrees
Gas Spring ControlYes
Voltage120V / 220V
Power500 – 1000 W
Emergency Open ButtonYes
Time Range0 – 999 sec
Maximum Temperature225 °C
Temperature Accuracy±0.5%
Packing Size63.5 × 34 × 59.5 cm
Net Weight25.0 kg
Gross Weight27.00 kg
Warranty1-Year Warranty

Features

Digital Controller

Accurate time and temperature control with a large, easy-to-read LCD display.

Large Working Area

Wide opening angle up to 50°, providing a spacious working area for safe and effortless operation.

Safe Operation

Machine safety and build quality are continuously monitored to ensure reliable and secure use.

Variable Working Pressure

Easily adjustable pressure settings for precise control across different materials and applications.

Precise Temperature Distribution

High-quality heating plate delivers even and consistent temperature distribution across the entire surface.

Low Hysteresis

Advanced temperature controllers minimise fluctuations, maintaining stable and accurate heat levels.

SIZE: 15x15cm & Cap Heater 102x 161.5mm

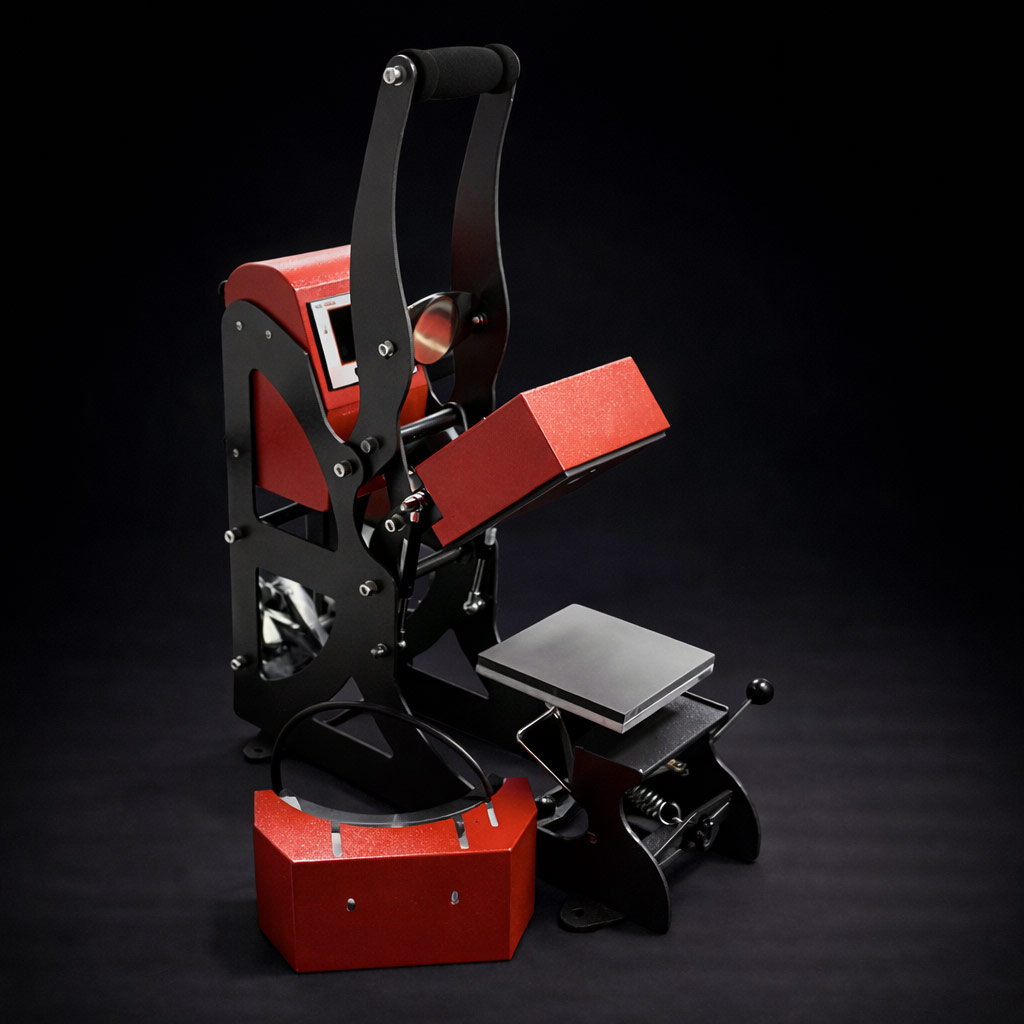

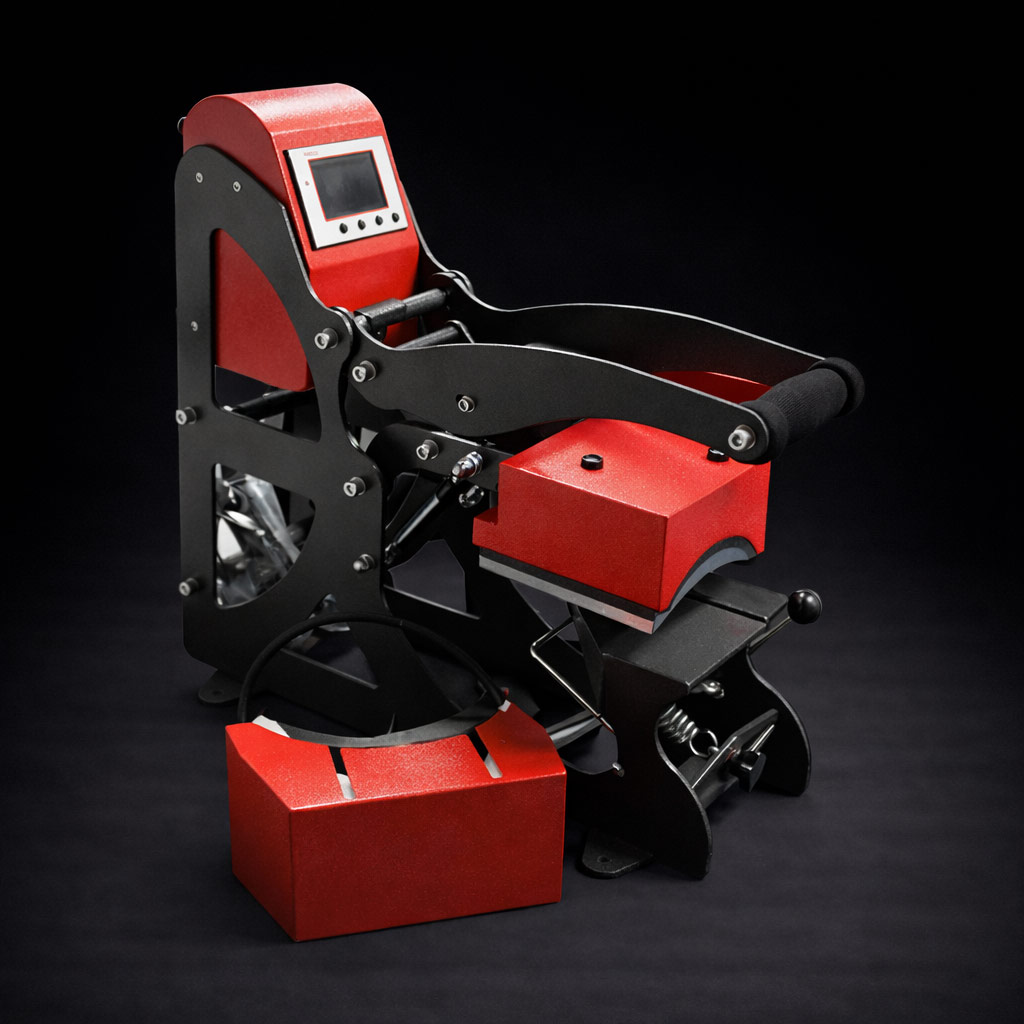

Cap hat Heat Press HEST HT15

Heat Press HEST HT-15 Cap Hat Heat Press Machine, Auto Release with Flat Plate Size 15x15cm & Cap Heater 102x 161.5mm

Buy Now

Size:150 X 150 mm

Cap hat and logo Heat Press HEST HT15 V.2

Heat Press HEST HT-15 V.2 Cap Hat and Flat logo  Heat Press Machine, Auto Release

Buy Now
