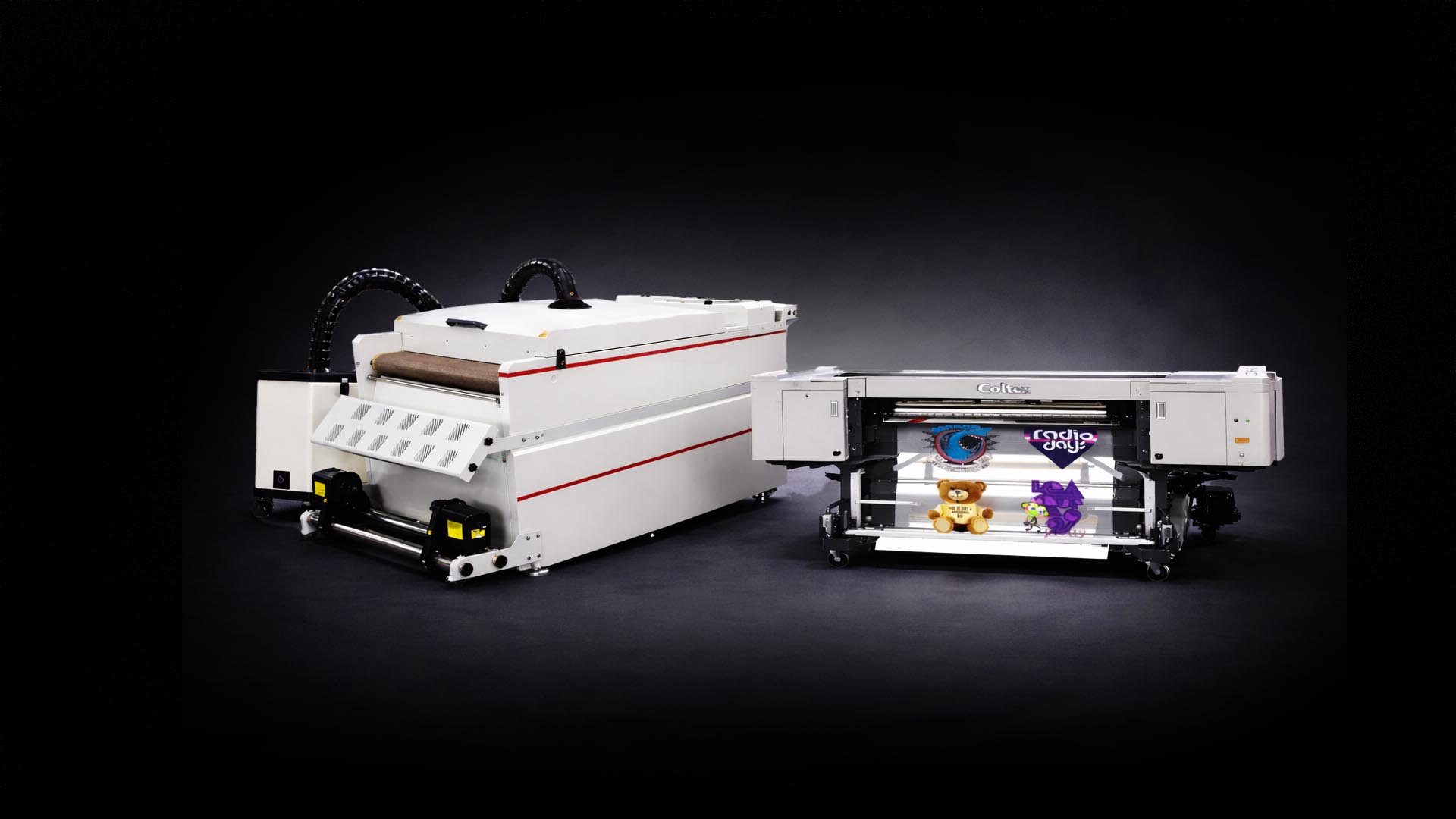

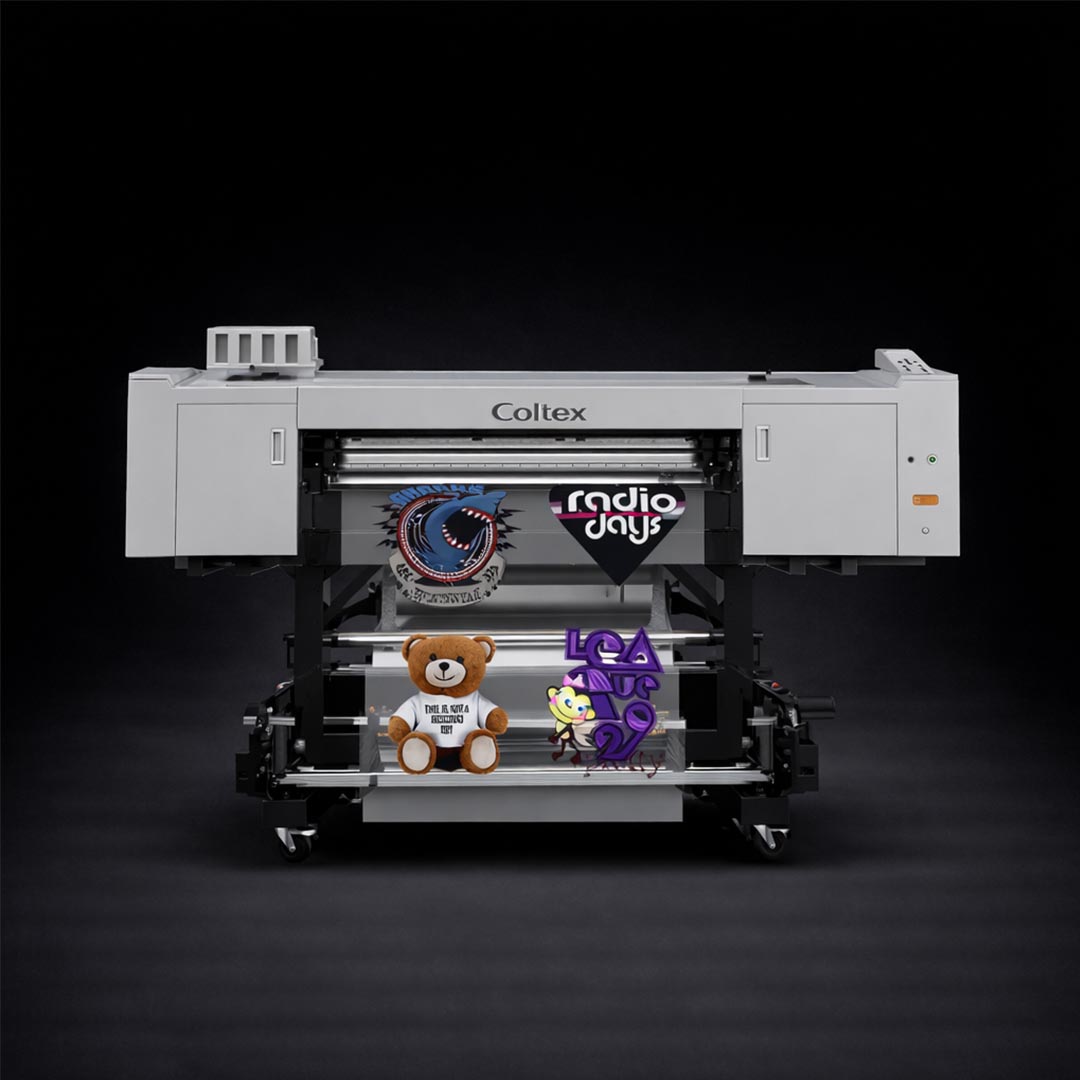

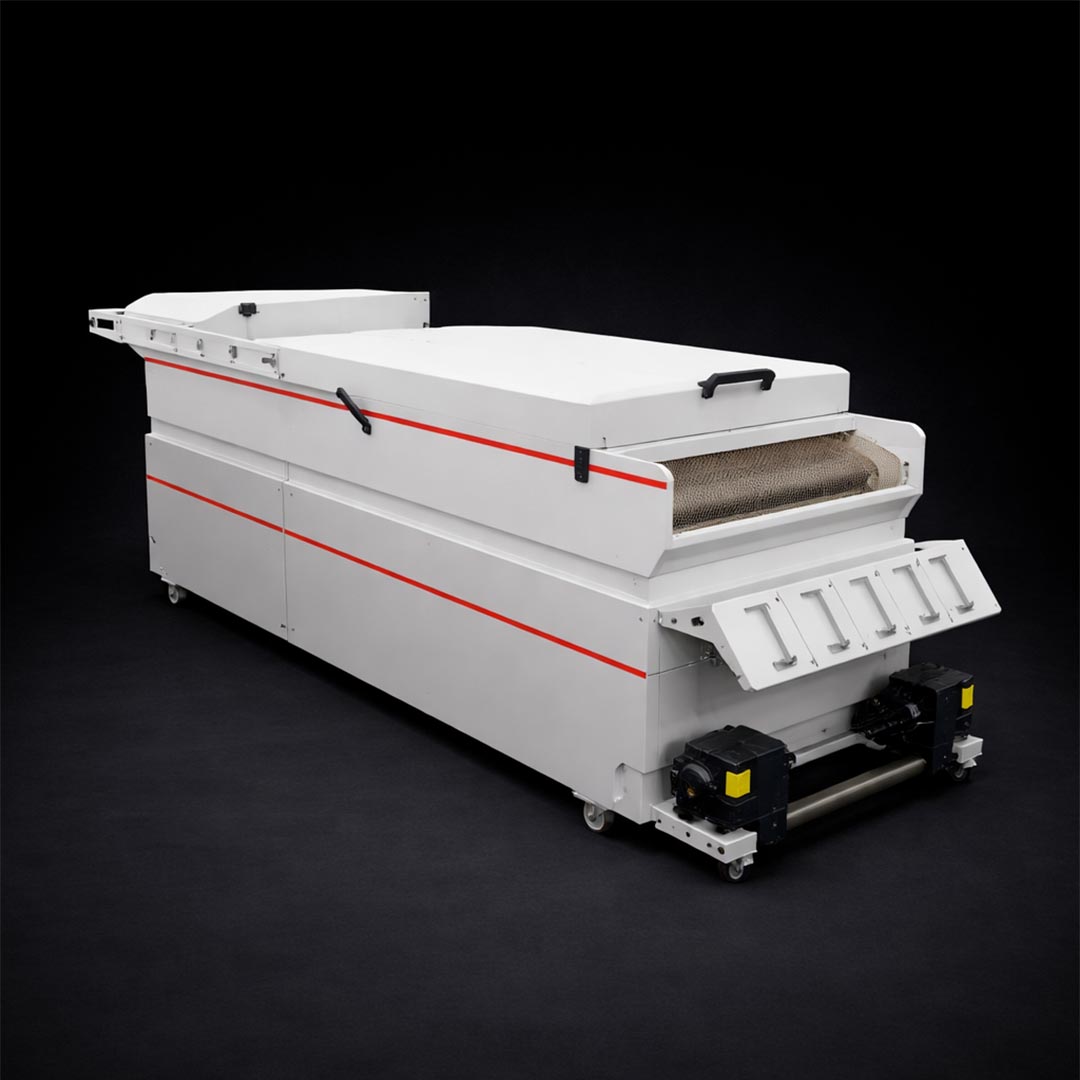

Coltex X1-602 DTF Printer and Powder Shaker
24-inch new technology Direct-to-film printer with DTF shaking powder and purifier colour-fixing machine
dryer heat transfer DTF printer
UV roll printer integrating printing, powder shaking and drying
| Specification | Details |
|---|---|
| Model | X1 DTF Printer |
| Printer Head Parameters | |
| Print Head Type | Epson i3200 |
| Number of Print Heads | 2 / 4 |
| Print Parameters | |
| Production Speed | 26 m²/h |
| Quality Speed | 16 m²/h |
| Maximum Printing Accuracy | 3200 dpi |
| Printing Medium | |
| Print Media Type | Hot Melt Film |
| Media Width | 700 mm (max) |
| Actual Printing Width | 600 mm |
| Rewinding & Unwinding System | Motor dual-power rewinding system with damping unwinding system |
| Platform Air Suction | Independent intelligent adjustable suction system |
| Numerical Control System | |
| Software | Standard Photoprint (other RIP optional) |
| Data Interface | High-speed USB 3.0 / Gigabit Ethernet Port |
| Operating Environment | |
| Power Configuration | AC 220V, 50Hz / 60Hz |
| Operating Temperature | 15 – 30 °C |
| Product Specifications | |
| Machine Size |
1740 × 805 × 1300 mm (150 kg) 2305.8 × 1092 × 1101 mm (260 kg) |
| Package Dimensions |
1870 × 950 × 730 mm 2410 × 1130 × 1070 mm |
