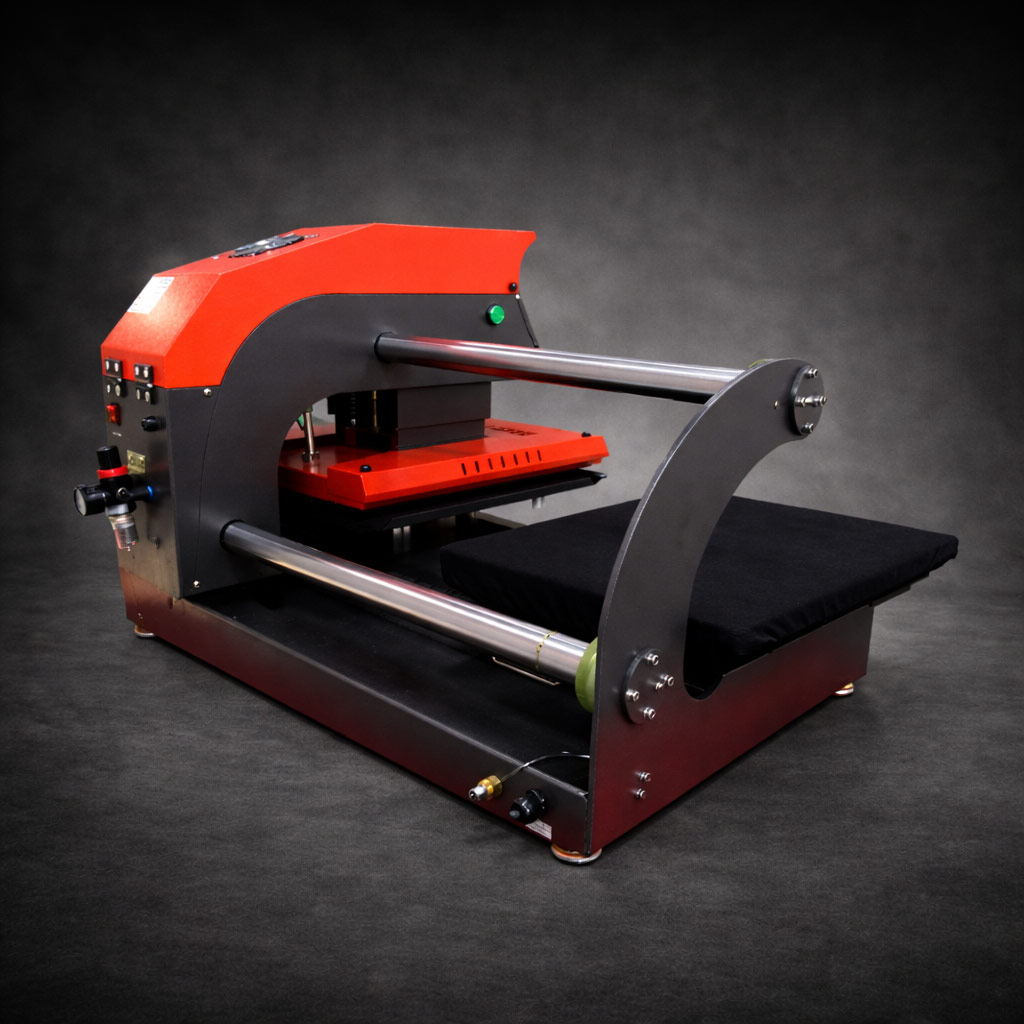

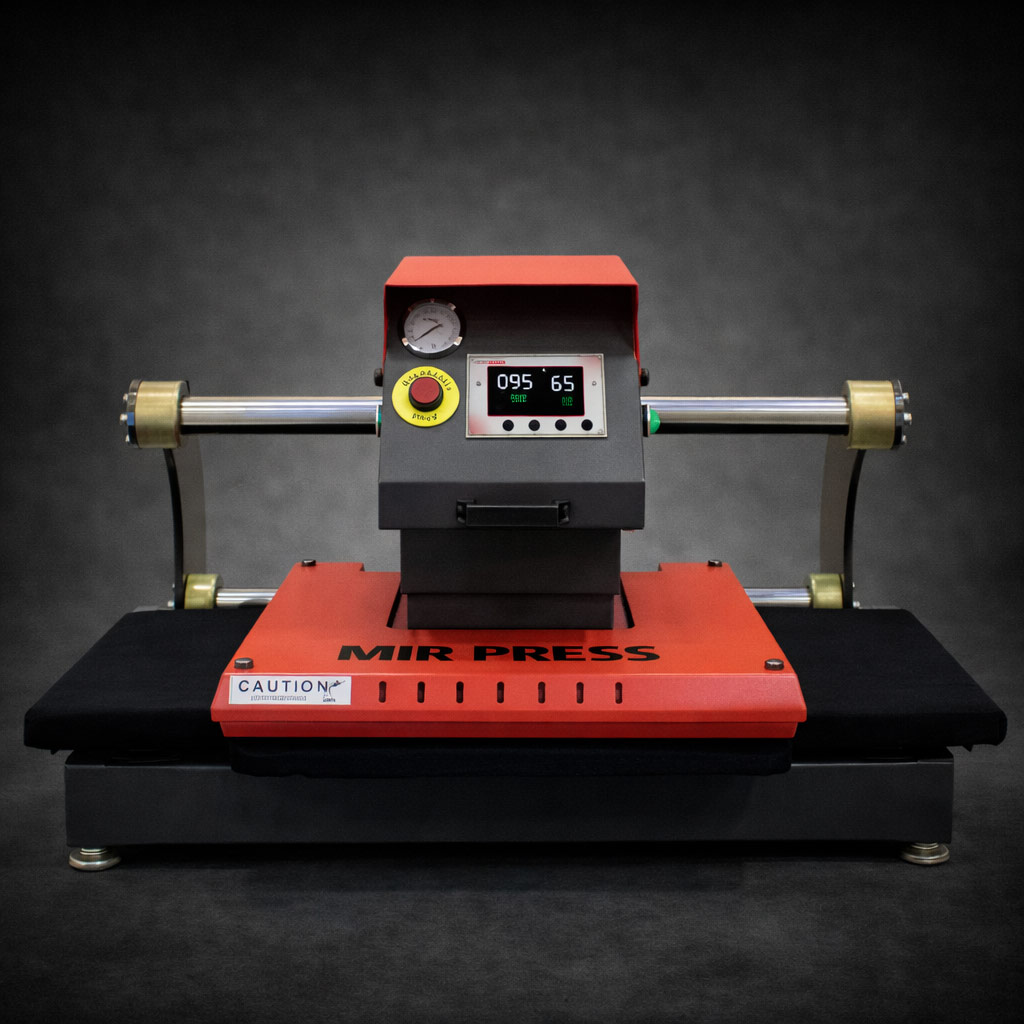

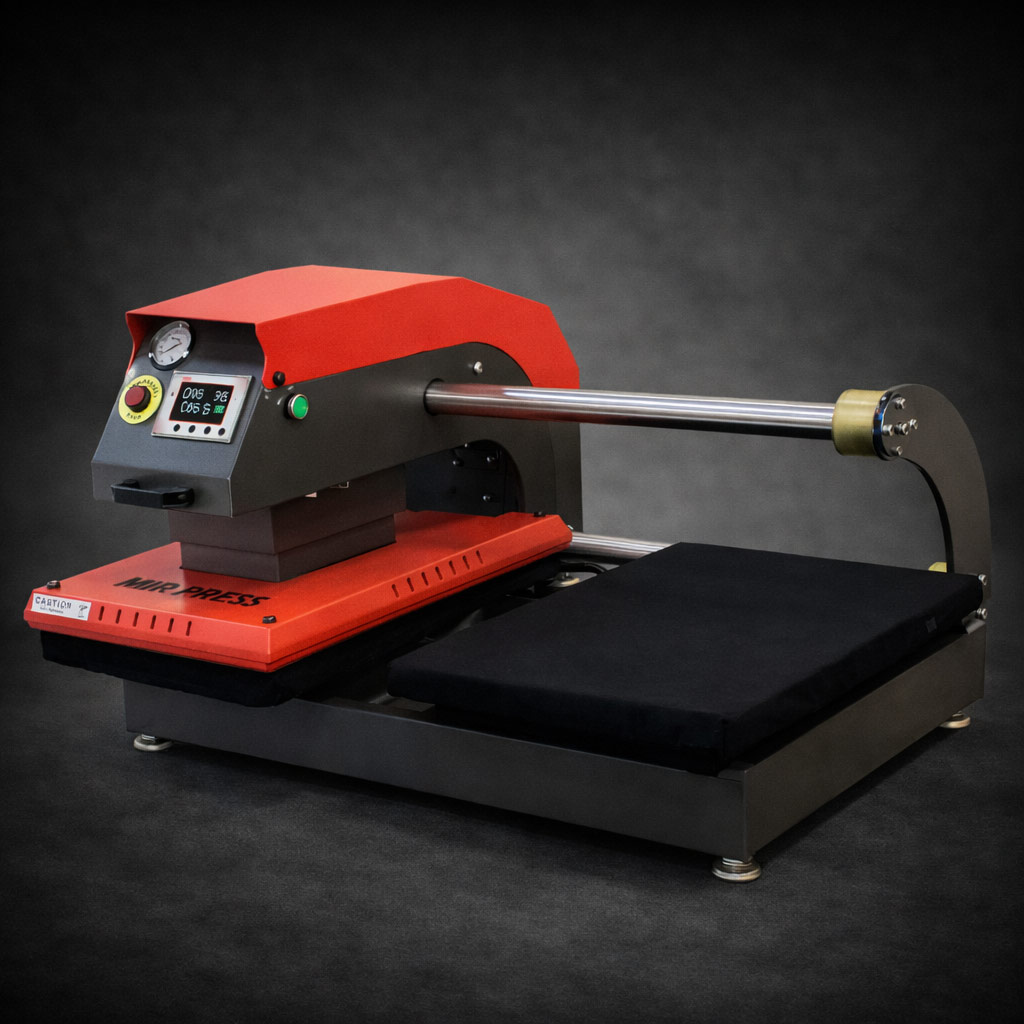

The newly produced heat press UTOPIA UT-D45 is for professional textile printers of astronomical objects: With an extra large work area of 40 x 50 cm,
the transfer press is especially suitable for heat transfers on expansive media such as flags, T-SHIRTS, sheets or room dividers made of textile.
The base plate acts as a drawer, which allows convenient arranging of transfer objects and can be managed notwithstanding its size with little effort. The pressure of the UTOPIA UT-D45 transfer press is performed by compressed air, which means working with uniform and reproducible outcomes.
The pneumatic head of the heat plate allows due to perpendicular contact pressure a flawless transferring of multiple materials without displacement outcomes, etc. The UTOPIA UT-D45 heat press with a heat output of 2.5 KW is suitable for all standard transfer processes and thus can be used in almost all areas of technology transfer.
| Specification | Details |
|---|---|
| Machine Type | Automatic, Two Station |
| Suitable | Sublimation, vinyl & metal |
| Platen Size | 2 × 16″ × 20″ (40 × 50 cm) |
| Air Compressor | Required |
| Under Plate | Fixed |
| Emergency Stop Switch | Included |
| Controller | Digital Time & Temperature Control |
| Printable Articles | Up to 32 mm thickness |
| Gas Spring Control | Yes |
| Voltage | 120V / 220V |
| Power | 1450 W / 1800 W |
| Time Range | 0 – 999 sec |
| Maximum Temperature | 225 °C |
| Temperature Accuracy | ±0.5% |
| Packing Size | 121 × 99 × 76 cm |
| Net Weight | 112 kg |
| Gross Weight | 160 kg |
Heat Press Utopia UT-D45 Pneumatic Double location shuttle Heat Press 40x50cm, Digital heat press machine t-shirt transfer sublimation DTF and Vinyl press
Advanced heat press technology delivering consistent pressure, accurate temperature control, and long-term reliability.
